Loading platform AMTR-I

Loading platform AMTR-I

Leave review
Intended use

The mechanical AMTR-I bridge is designed for use in all kinds of industrial facilities where an additional docking system is required. It is recommended primarily for logistics facilities where there is a continuous flow of goods.

Standard colours
RAL 9005 RAL 7042 RAL 5010 (two-component resin-based paint)
Heights
550-650 mm
Width
1200-2600 mm
Product datasheet
Download
Read More
Standard seal AMTR-P

Standard seal AMTR-P

Leave review
Intended use

The AMTR-P inflatable seal is the most effective and the most durable of all types of docking system seals. The air bags are harmonica-shaped, which creates an optimal seal. This type of seal is especially recommended in cases of significant differences in temperature inside and outside the room, for example in air-conditioned or cooled storage areas. Seals with non-standard dimensions can be designed.

Application Nominal
Loading systems
Control

Both the tubular and blower seal motor are operated with one button. When the truck is being docked for unloading, the engines seal the space between the open gate and the vehicle within 30 seconds.

Heights
3700 mm
Width
3500 mm
Structure depth
800 mm
Mounting height
4700 mm
Bag material
670 gr/m2
Side width of bags (inflated)
600 mm
Height of the upper bag (inflated)
1000 mm
Inflation time
approx. 30 s
Deflation time
approx. 40 s
Drive

The upper seal air bag is extended by the shaft of the tubular motor. During expansion, the blower motor ensures that the bags are filled with air.

Maximum height
610m3/h
Maximum compression
500 Pa
Volume
70 dB
Engine type
R2E 160-AY 47-01
Rotational speed
2100 [1/min]
Supply voltage
230 V
Weight
4 kg
Power consumed
240 W 50 Hz
Product datasheet
Download
Read More

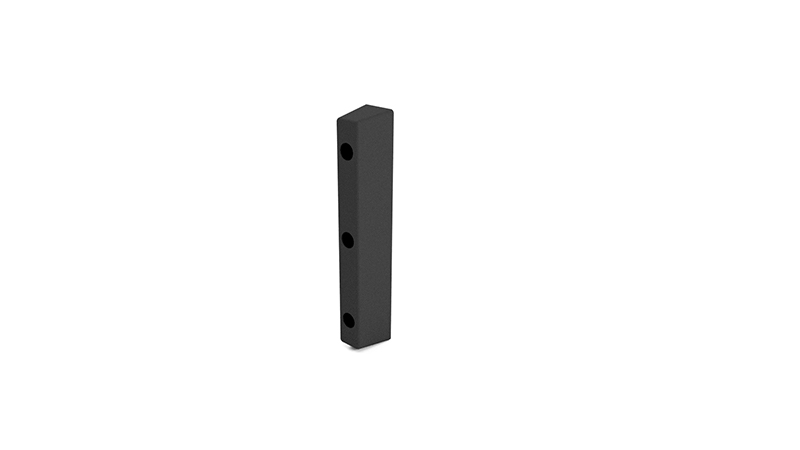

Standard bumper JUMBO

Intended use

The basic function of the bumper is to protect and secure the docking system against direct contact with the docking vehicle. The ergonomic design of the bumper allows it to absorb the load during docking, ensuring a safe distance between the object and the approaching vehicle and preventing damage.

Standard technical parameters*

Application Nominal

Loading systems

Dimensions

450x70x80 mm

Materials

High-quality rubber, steel

Assembly

With screw anchors (3 pcs)

*Can be adapted according to the customer’s requirements

A standard-size bumper with a design that ensures resilience for maximum safety

during vehicle docking.

  • the primary function of the bumper is to absorb the forces generated when a truck comes into contact with the loading bay,
  • different types of bumpers can be selected for different docking systems to ensure the maximum level of safety.

Product datasheet

A separate catalog card is available for each product in our offer.
