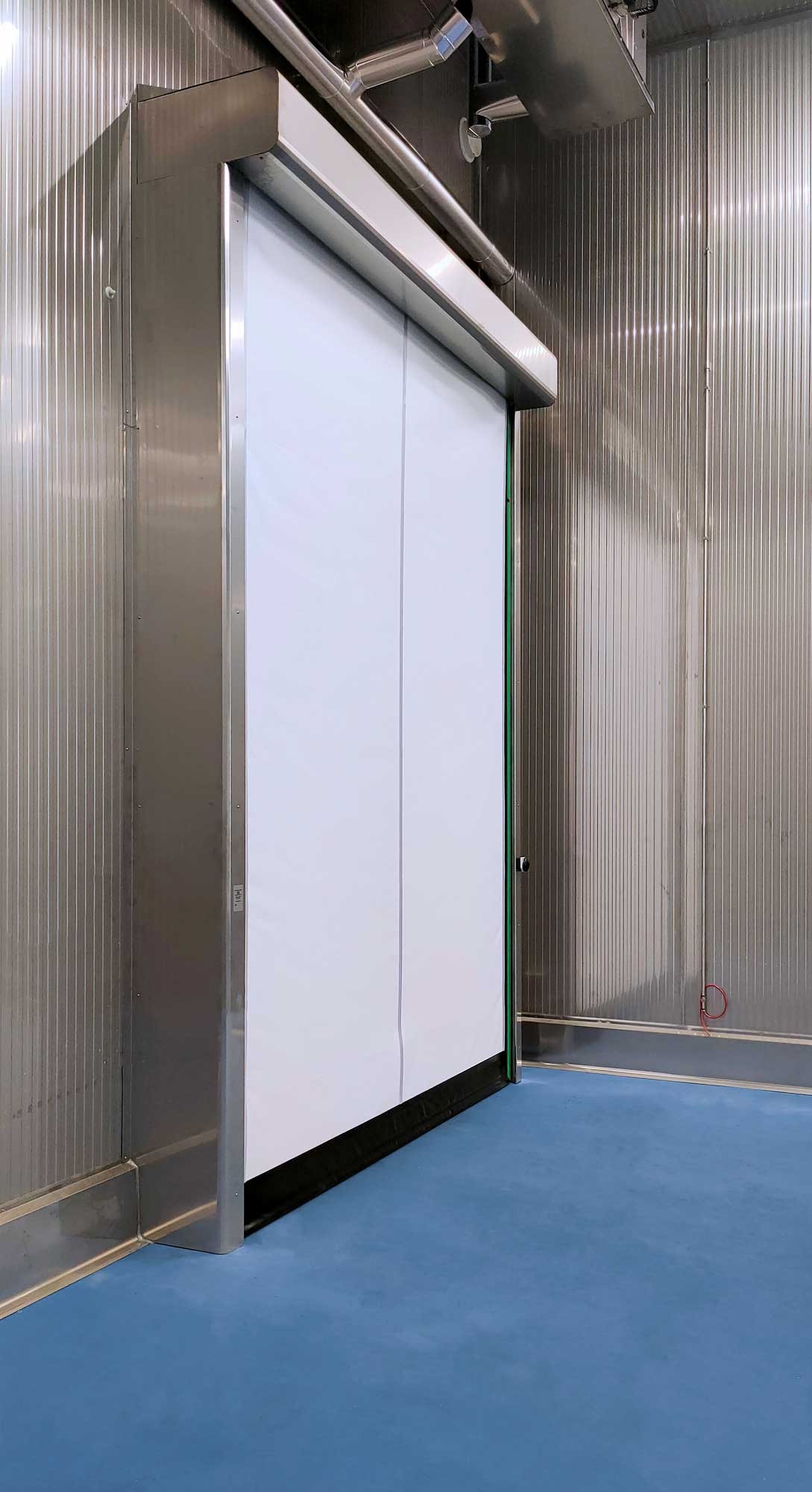

AMTR Freeze 2 - High-Speed Double Curtain Freezer Door

Intended use

AMTR Freeze 2 is a high-speed self-repairing roll-up door with a double curtain system, designed for extreme freezer environments where maximum thermal insulation and stable separation between temperature zones are critical. With opening speeds of up to 1.5 m/s, the door ensures efficient traffic flow in high-performance cold storage and logistics applications.

The system features a self-repairing double PVC curtain that automatically reinserts into the side guides after accidental impact, minimizing downtime and ensuring continuous operation in demanding conditions.

The double curtain construction, combined with an internal air layer, provides advanced thermal insulation with a U-value of approximately 1.4 W/m²K. This significantly reduces heat transfer and supports stable operation in environments with temperature differences of up to 40°C between zones.

To prevent ice formation and condensation, the door is equipped with an integrated heating system including heated guides, motor heating and control cabinet heating, as well as air drying support. This ensures reliable operation even in extreme low-temperature conditions down to -35°C.

Powered by a 3-phase motor with active brake (IP55) and controlled via a logic system with inverter or contactor configuration, AMTR Freeze 2 ensures precise and stable movement. With maximum dimensions of 4500 × 5600 mm and wind resistance up to Class 3 (EN 12424), the door delivers consistent performance in industrial applications.

Equipped with a dual IP67 multibeam safety barrier and double anti-jamming sensors, AMTR Freeze 2 complies with EN 12604 and EN 12453, ensuring safe and reliable operation.

Standard technical parameters*

Application

inside / outside - only on request

Maximum dimensions

4500 L x 5600

Operating speed

up to 1.5 m/sec

Wind resistance [EN 12424]

class 3

Range temperature

- 35 °C to + 10 °C

Frame [EN 12604]

galvanised steel / stainless steel AISI 304 or 316 / powder coated

Roller

galvanised steel / stainless steel AISI 304

Motor position

Lateral LH/RH

Curtain

Double polyvinyl chloride (PVC) curtain with inner tube / FDA (double) / Antistatic (double)

Windows

absent in standard / one row, with porthole each 850 L x 300 H mm optional

Windows type

transparent

*Can be adapted according to the customer’s requirements

Standard equipment
Optional equipment

Double PVC curtain system (with internal air layer)
Self-repairing curtain system
Heating system (infra-curtain heater, frame and motor heating cables)
Timer-controlled heating system
Logic control system (400V, inverter or contactor depending on size)
Encoder positioning system
3-phase self-braking motor (IP55)
Galvanised steel frame and roller
Powder-coated control cabinet
Dual IP67 multibeam safety barrier
Double anti-jamming sensor
Flashing light
Manual emergency opening (rod)

Stainless steel construction (AISI 304 / 316)
Stainless steel roller (AISI 304 / 316)
Stainless steel control cabinet
Plastic control cabinet IP66
Microwave radar activation
UPS emergency opening system (with limitations)
FDA-approved double curtain
Anti-static double curtain (1700 g/m²)
Vision panels (one row, 850 × 300 mm)
Heating element for control box
Custom logos and prints

AMTR freeze 2 curains

The AMTR Freeze 2 curtain is designed as a double-layer system for maximum thermal insulation and reliable separation between temperature zones. It is engineered for intensive use in extreme freezer environments.

Curtain types

The standard curtain consists of a double PVC structure (900 g/m², 0.9 mm each layer) forming a double curtain system with an internal air layer.

This configuration provides thermal insulation with a U-value of 1.4 W/m²K, ensuring stable performance in freezer environments with temperature differences.

This version is designed for food industry applications requiring compliance with hygiene standards.

The double PVC curtain is approved for food use while maintaining the same thermal performance of U = 1.4 W/m²K, ensuring safe and reliable operation in hygiene-sensitive environments.

The anti-static curtain is designed for environments where electrostatic discharge must be minimized.

It features a reinforced PVC structure (1700 g/m², 2 mm thickness) with improved durability and a thermal performance of U = 1.39 W/m²K, making it suitable for demanding industrial applications.

Control

AMTR Freeze 2 is equipped with an advanced control system based on a logic board with inverter or contactor configuration, depending on door dimensions. The system ensures precise, stable and reliable operation even in extreme low-temperature environments.

Pre-wired plug & play installation simplifies setup, while adjustable parameters allow optimization of door performance for specific operational conditions.

Control cabinet

metal, powder coated / IP66 stainless steel AISI 304-316 / plastic, IP66

Control system

logic board, with contactors or inverter, depending on door dimensions

Positioning system

Absolute encoder or Mechanical limit switches

Drive unit [EN 12604]

Three-phase self-braking motor IP55

Safety devices [EN 12453]

Dual Multibeam barrier IP67 / Double anti-jamming sensor / Flashing light / Microwave radar

Emergency opening

Manual release rod / UPS

Drive

AMTR Freeze 2 is powered by a durable 3-phase self-braking motor (IP55), designed for intensive operation in extreme freezer conditions. The drive system ensures stable performance, smooth movement and reliable operation even under high load.

With opening speeds of up to 1.5 m/s, the door enables efficient traffic flow while maintaining temperature separation. The system is engineered for durability, the system is designed to withstand up to 1,000,000 operating cycles, ensuring long service life and dependable performance in warehouses, logistics centres and production environments.
