AMTRV-CD Hydraulic loading platform with variable load capacity

Intended use

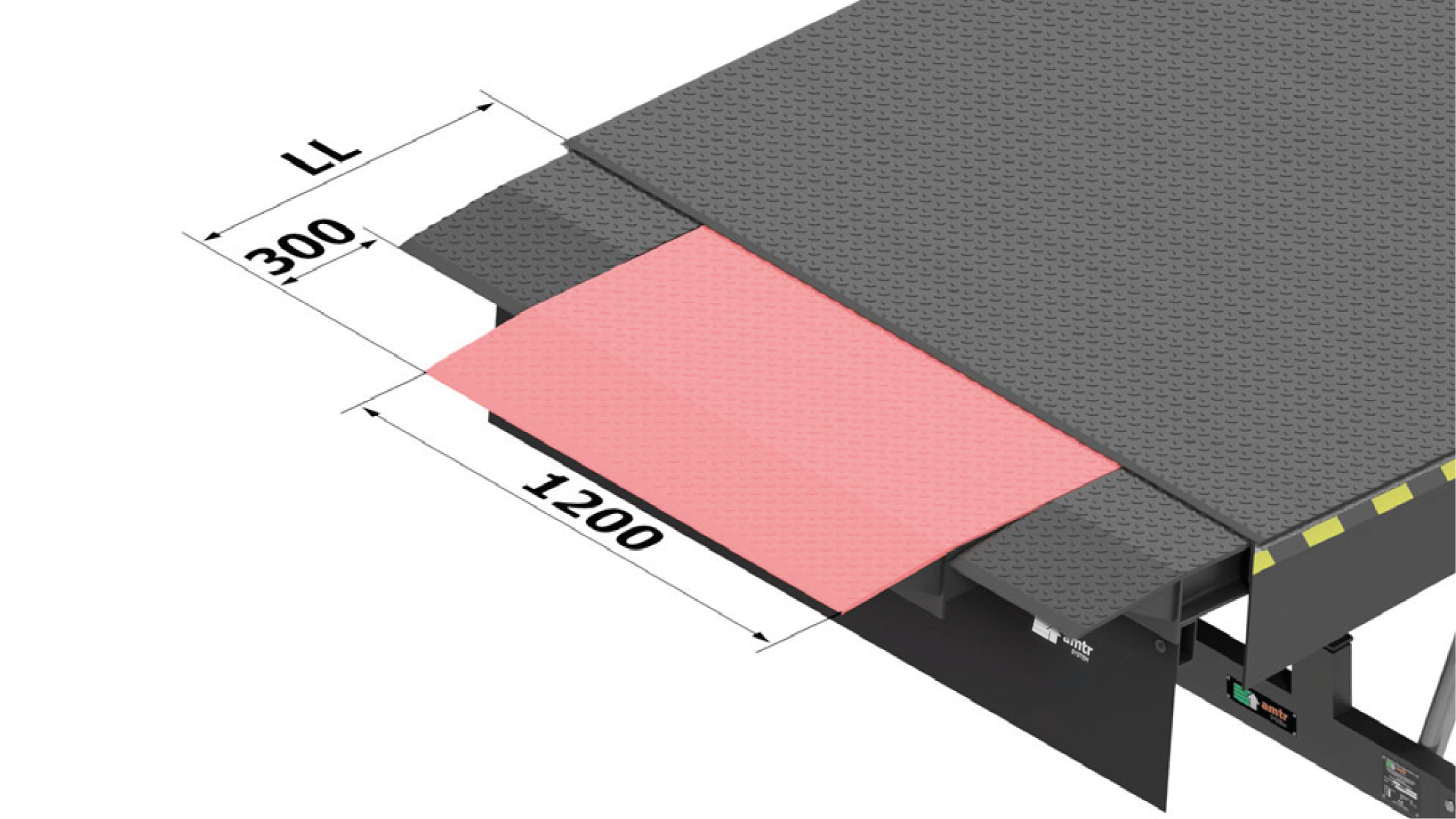

The hydraulic dock leveler serves to bridge the height difference between the building and the vehicle trailer, ensuring a smooth connection. The CD system is equipped with a telescoping, segmented lip, specifically designed to accommodate a wide range of vehicles with varying designs and cargo area dimensions. The operator can select the appropriate vehicle type and platform mode via the control panel. For vans, with narrower loading areas, the telescopic lip is reduced to 1200 mm, with a load capacity of 20 kN. When the full extension is deployed, the platform’s load capacity increases to 60 kN.

Standard technical parameters*

Application Nominal

Loading systems

Lengths Nominal

3000,3500,4000 mm

Widths Structure

2000,2250 mm

Construction height

800, 850, 900 mm

Nominal lengths of the telescopic lip

1000 mm

Sheet metal thickness

8/10 mm

Nominal load capacity

2/6 ton (20/60 kN)

Working ranges above the level

0 to 415 mm

Working ranges below the level

0 to 530 mm

Standard colours

RAL 9005 two-component resin-based paint

*Can be adapted according to the customer’s requirements

Standard equipment
Optional equipment

electrical installaon,
hydraulic system,
control box,
three-part pull-out lip,
platform varnished RAL 9005,
CE declaration of conformity.

additional anti-slip coating of the leveller contact elements,
leveller structural elements painted in any RAL colour or hot-dip galvanised,
normal or reinforced wheel stops of non-standard dimensions to absorb the impact,
sealing in the event of an opening under the vehicle's hydro flap,
powder coating,
leveller structure and all hydraulic components made of acid-resistant steel.

Dock leveller lip AMTRV-CD

The AMTRV CD dock leveller telescopic lip is made of high quality checker metal plate 12/14 mm thick and is equipped with a special, durable, dirt resistant, and maintenance free extension mechanism. A system of straight, high durability slides ensures its quiet and trouble free operation. The AMTRV-CD leveller lip has a segmented design, allowing it to operate with vehicles of different types, depending on the mode of operation selected.

Types of lips

AMTRV CD lip

checker metal plate 12/14 mm
durable, dirt resistant, and maintenance free extension mechanism
segmented design
quiet and trouble-free operation

Control

The actuator system consists of a set of cylinders that allows independent extension of the middle section of the lip
The lip is extended with a separate actuator,separately powered form the hydraulic unit
Stepless adjustment to vehicle height during loading
Four - button control TL401
Intuitive control with the compulsory section of 20 kN or 60 kN operating mode and a button for auto - return
It is possible to couple the ramp control to the door control
Control includes protection in the event of a power failure or the use of the emergency switch
In case of power failure or emergency switch activation, the leveller is protected from descending, stopping and maintaining its current positio

Tank capacity

7 dm3

Working pressure

200 bar

Motor power

1,5 kW

Supply voltage

400 VAC

Control voltage

24 V DC

Protection type

IP65

Operating medium

Mobil DTE 10 Excel 15

Dock pan

Available options:

standard
R-frame
RS- Frame before conreting

Drive

the drive system consists of a set of cylinders allowing for independent lip central section extension,
the lip is extended by a separate cylinder, supplied separately from the hydraulic unit,
closed hydraulic system, • smooth adaptation to the vehicle height during loading.
