AMTR-MR Mechanical Dock Leveller with Tilted Ramp

AMTR-MR Mechanical Dock Leveller with Tilted Ramp

30 September 2020 Bridges and plates Leave a comment
Leave review
Intended use

The mechanical dock leveler is designed as an alternative to hydrau lic external ramps for servicing heavy-duty trucks. Thanks to the use of a tilted ramp, there is no need to park the vehicle precisely before starting the loading/unloading process. An additional advantage is the lack of requirement for electrical power supply and minimal interference with the maneuvering area.



Tilted ramp length

  • 360 mm

Platform top sheet

  • Anti-slip 6/8 mm (DIN 59220)

Tilted ramp sheet

  • 10/12 mm (DIN 59220)
Application Nominal
Handling systems
Lengths Nominal
730 mm
Widths Structure
1750; 2000; 2100; 2200 mm
Nominal lip lengths Sheet metal
360 mm
Nominal load capacity
60 kN
Working ranges above the level
0 to +110 mm
Standard colours
RAL 9005 (two-component resin-based paint)
Working ranges below the level
-110 mm to 0
Product datasheet
Download
Read More
Standard seal AMTR-U

Standard seal AMTR-U

30 September 2020 Seals Leave a comment
Leave review
Intended use

The AMTR-U mechanical seal is designed to seal a truck trailer at the loading bay. There is no need to use any additional elements to protect the loaded goods, as the seal is fully integrated with the leveller. The main task of the seal is to limit the influence of unfavourable weather conditions on the work in the warehouse. The versatile dimensions of the AMTR-PRO model make it compatible with semi-trailers. Seals with non-standard dimensions can also be designed.

Application Nominal
Loading systems
Standard colours
Black
Heights
3400 mm
Width
3400 mm
Depth
600 mm
Top flap
975 - 1000 mm
Side flap
600 - 675 mm
Product datasheet
Download
Read More

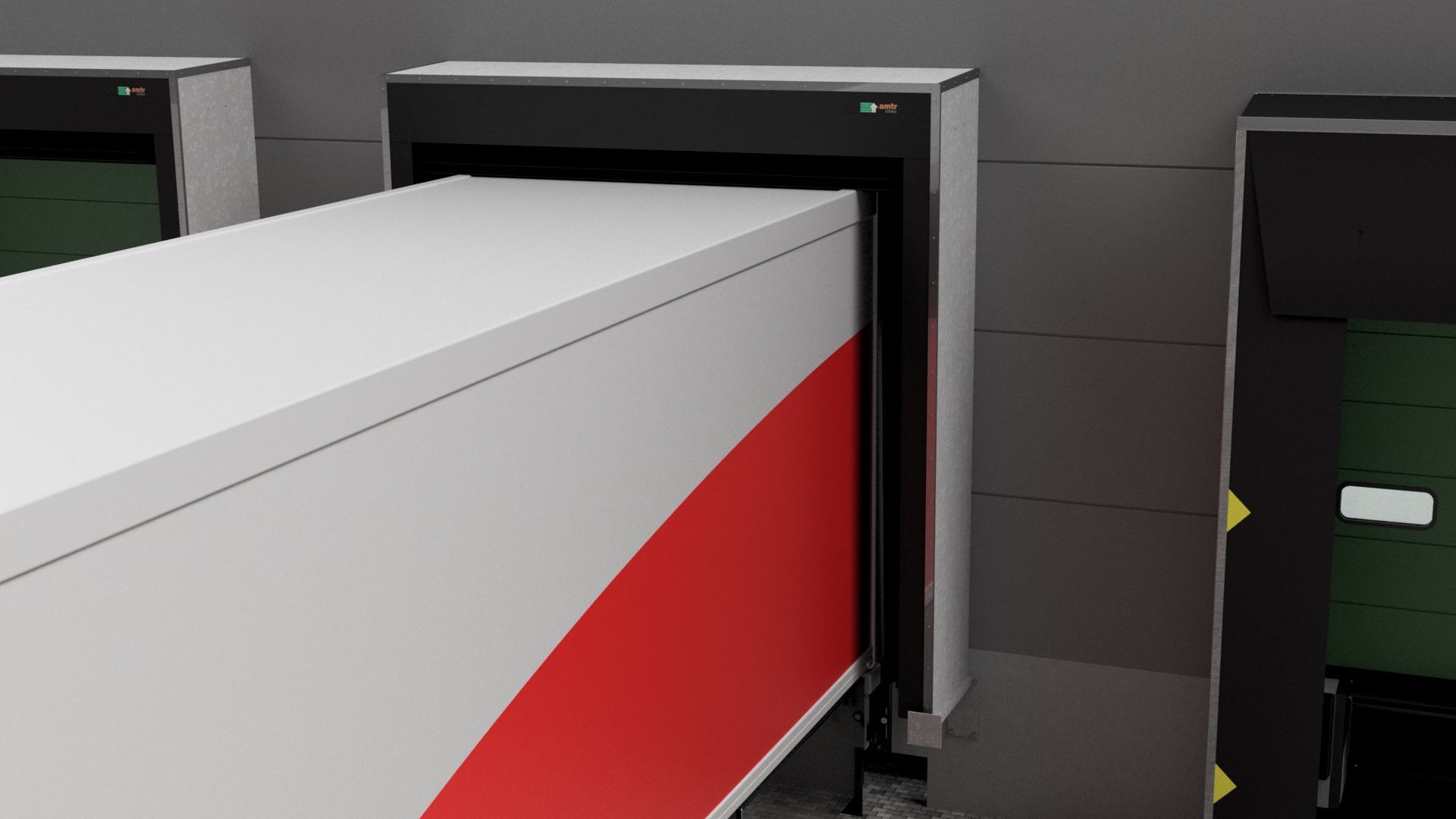

Standard seal AMTR-P

30 September 2020 Seals Leave a comment 2895 Views Leave review

Intended use

The AMTR-P inflatable seal is the most effective and the most durable of all types of docking system seals. The air bags are harmonica-shaped, which creates an optimal seal. This type of seal is especially recommended in cases of significant differences in temperature inside and outside the room, for example in air-conditioned or cooled storage areas. Seals with non-standard dimensions can be designed.

Standard technical parameters*

Application Nominal

Loading systems

Heights

3700 mm

Width

3500 mm

Structure depth

800 mm

Mounting height

4700 mm

Bag material

670 gr/m2

Side width of bags (inflated)

600 mm

Height of the upper bag (inflated)

1000 mm

Inflation time

approx. 30 s

Deflation time

approx. 40 s

*Can be adapted according to the customer’s requirements

  • The AMTR-P inflatable seal is made of durable, weather-resistant components:
  • the air bags are made of woven polyester, with double-sided PVC coating,
  • flexible and extremely stable protective strips made of 3500 g/m2 two-layer weaved polyester,
  • the seal has an abrasion-resistant, antistatic, hard PVC coating on both sides,
  • the front of the seal is made of galvanised steel, finished with a grey (RAL 7042) synthetic coating
  • the reinforcing profiles are made of anodised aluminium,
  • the seal is equipped with hot-dip galvanised consoles for full safety.

Control

Both the tubular and blower seal motor are operated with one button. When the truck is being docked for unloading, the engines seal the space between the open gate and the vehicle within 30 seconds.

Drive

The upper seal air bag is extended by the shaft of the tubular motor. During expansion, the blower motor ensures that the bags are filled with air.

Maximum height

610m3/h

Maximum compression

500 Pa

Volume

70 dB

Engine type

R2E 160-AY 47-01

Power consumed

240 W 50 Hz

Rotational speed

2100 [1/min]

Supply voltage

230 V

Weight

4 kg

Product datasheet

A separate catalog card is available for each product in our offer.
Download
