Standard seal AMTR-U

Standard seal AMTR-U

Leave review
Intended use

The AMTR-U mechanical seal is designed to seal a truck trailer at the loading bay. There is no need to use any additional elements to protect the loaded goods, as the seal is fully integrated with the leveller. The main task of the seal is to limit the influence of unfavourable weather conditions on the work in the warehouse. The versatile dimensions of the AMTR-PRO model make it compatible with semi-trailers. Seals with non-standard dimensions can also be designed.

Application Nominal
Loading systems
Standard colours
Black
Heights
3400 mm
Width
3400 mm
Depth
600 mm
Top flap
975 - 1000 mm
Side flap
600 - 675 mm
Product datasheet
Download
Read More
Standard seal AMTR-P

Standard seal AMTR-P

Leave review
Intended use

The AMTR-P inflatable seal is the most effective and the most durable of all types of docking system seals. The air bags are harmonica-shaped, which creates an optimal seal. This type of seal is especially recommended in cases of significant differences in temperature inside and outside the room, for example in air-conditioned or cooled storage areas. Seals with non-standard dimensions can be designed.

Application Nominal
Loading systems
Control

Both the tubular and blower seal motor are operated with one button. When the truck is being docked for unloading, the engines seal the space between the open gate and the vehicle within 30 seconds.

Heights
3700 mm
Width
3500 mm
Structure depth
800 mm
Mounting height
4700 mm
Bag material
670 gr/m2
Side width of bags (inflated)
600 mm
Height of the upper bag (inflated)
1000 mm
Inflation time
approx. 30 s
Deflation time
approx. 40 s
Drive

The upper seal air bag is extended by the shaft of the tubular motor. During expansion, the blower motor ensures that the bags are filled with air.

Maximum height
610m3/h
Maximum compression
500 Pa
Volume
70 dB
Engine type
R2E 160-AY 47-01
Rotational speed
2100 [1/min]
Supply voltage
230 V
Weight
4 kg
Power consumed
240 W 50 Hz
Product datasheet
Download
Read More

Proximity docking system AMTR-ZSD

Intended use

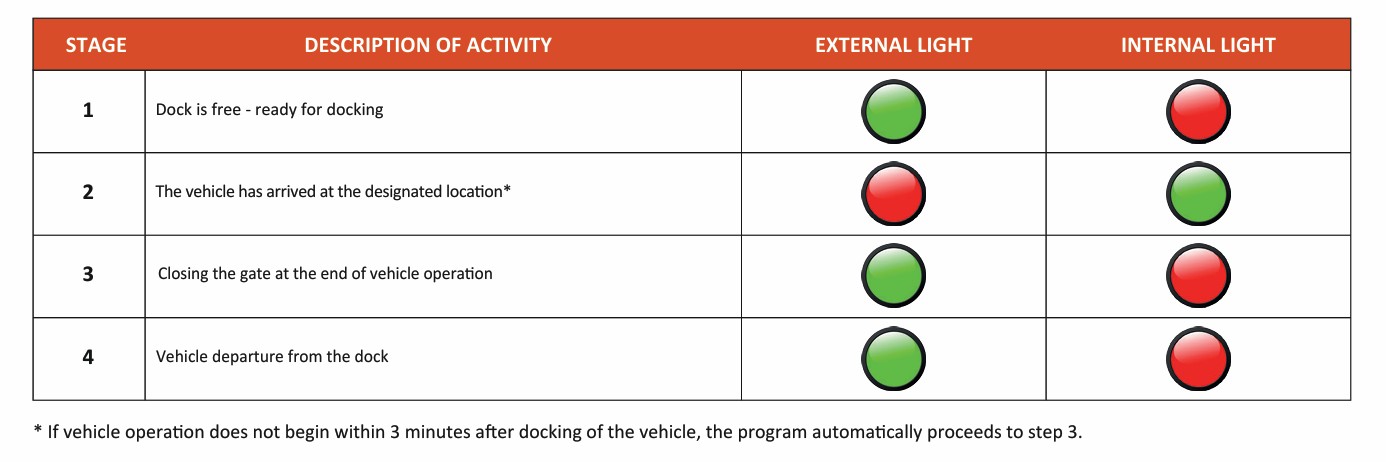

The proximity docking system is an electronic solution based on a proximity sensor connected to traffic lights, designed to enhance loading and unloading logistics as well as overall safety. It enables efficient cargo handling and assists drivers during vehicle docking. The system automatically notifies both the driver and the dock personnel when the vehicle is properly docked and ready for operation.



Features

  • External lights inform the driver of the distance to the dock, and internal lights inform that the vehicle is at the dock and operation may begin
  • The signaling system is based on a proximity sensor that is mounted at the front of the platform and signal lights (red and green) located outside and inside the dock

Standard technical parameters*

Application Nominal

Loading systems

Supply

230 VAC

Colour of light

Green & Red

Adjustable sensor range

10 – 1000 mm

Degree of protection

IP67

Signal light

40 W

Set includes

Control box, proximity sensor, main signal with green and red light, installation wiring set

*Can be adapted according to the customer’s requirements

  • External lights inform the driver of the distance to the dock, and internal lights inform that the vehicle is at the dock and operation may begin
  • The signaling system is based on a proximity sensor that is mounted at the front of the platform and signal lights (red and green) located outside and inside the dock

Product datasheet

A separate catalog card is available for each product in our offer.
