Loading plate AMTR-J

Loading plate AMTR-J

Leave review
Intended use

The mechanical AMTR-J bridge is designed for use in all kinds of industrial facilities where an additional docking system is required. It is recommended primarily for facilities where it is not possible to install levellers or where smaller delivery trucks are unloaded.

Standard colours
RAL 9005 RAL 7042 RAL 5010 (two-component resin-based paint)
AMTR 1000x1500
Width 1000 mm |Length 1500 mm
AMTR 1500x1000
Width 1500 mm |Length1000 mm
AMTR 1500x1200
Width 1500 mm |Length1200 mm
AMTR 1500x1500
Width 1500 mm |Length1500 mm
AMTR 2000x1200
Width 2000 mm |Length1200 mm
AMTR 2000x1500
Width 2000 mm |Length1500 mm
Product datasheet
Download
Read More
Dock leveller AMTRK Basic & Heavy Duty

Dock leveller AMTRK Basic & Heavy Duty

Leave review
Intended use

The swing lip dock leveller is designed for picking up pallets with a forklift to load or unload trucks. The leveller is equipped with a stable hinged plate that ensures quick and safe loading. The leveller has the CE mark. Its platform is made of 6/8 mm thick ribbed sheet metal. It is integrated with the service support and connected to the back of the leveller frame with hinges. Fully secure use is ensured by the anti-slip surface, foot protection along the entire length of the platform and the full lifting range of the leveller. Different methods of placing bridges in the foundation are possible.

Application Nominal
Loading systems
Lengths Nominal
2000, 2500, 3000, 3500, 4000 mm
Widths Structure
2000, 2250 mm
Construction height
610 mm
Nominal lip lengths Sheet metal
400, 500 mm
Sheet metal thickness
(depending on the load capacity)
Nominal load capacity
6-12 tonnes (60-120 kN)
Working ranges above the level
0 to 430 mm
Standard colours
RAL 9005 RAL 7042 RAL 5010 (two-component resin-based paint)
Tank capacity
6 dm3
Working pressure
140 bar
Motor power
1,1 kW
Supply voltage
230/400 V AC
Control voltage
24 V DC
Protection type
IP54
Operating medium
TELLUS T-15 or RANDO HDZ-15 mineral oil
Control
  • the drive system of the leveller is a hydraulic cylinder,
  • the lip is lifted by a separate cylinder, powered separately by a hydraulic unit,
  • closed hydraulic system (maximum pressure 22 bar),
  • smooth adjustment to the vehicle height during loading,
  • single-button control,
  • protection in the event of a power failure or the use of an emergency switch, the leveller is protected against fall – it will stop and maintain the position it was in at the moment,
  • the leveller control system can be coupled with the gate control system.
Dock pan

The main function of the pan is to connect the leveller with the dock. The pan is directly filled with concrete.

Product datasheet
Download
Read More

Loading houses

Modular loading houses AMTR-D

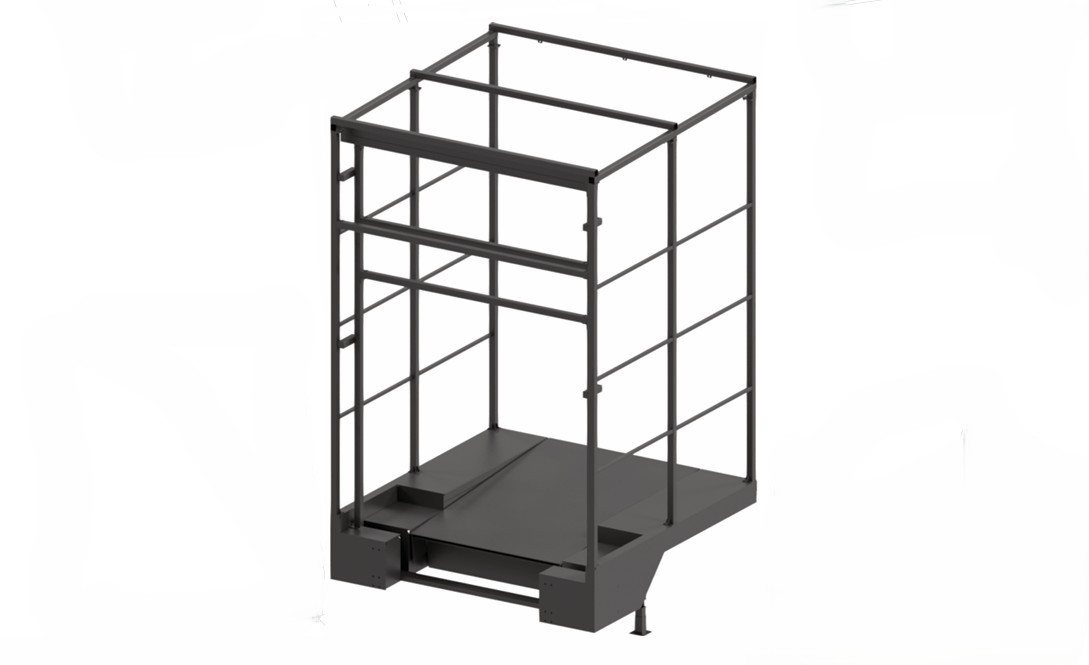

Modular loading houses AMTR-D

Leave review
Intended use

AMTR loading houses are an economical and ergonomic alternative to typical loading bays inside warehouses. This versatile solution can be used with all types of platforms and gate seals. The loading house can be adapted to various types of thermal insulation, several houses with the same structural elements can be arranged in a line or installed at an angle. The houses are designed both to be used in new buildings, as well as for modernising existing facilities.

House installation angles: 30, 45, 60, 90, 120, 135, 150 degrees.

Application Nominal
Loading systems
Lengths Nominal
2080, 2580, 3080, 3580, 4080, 4580 mm
Widths Structure
3400, 3500 mm
Construction height
950 - 1500 mm
Standard colours
m2 RAL 9005 (two-component resin-based paint)
Load capacity
60 kN
Water drainage
through the front edge
Maximum wind resistance
(Eurocode 3) 0,84 kN/m2
Maximum snow cover pressure resistance
(Eurocode 3) 2,00 kN/m2
Product datasheet
Download
More
